Reel Stacker

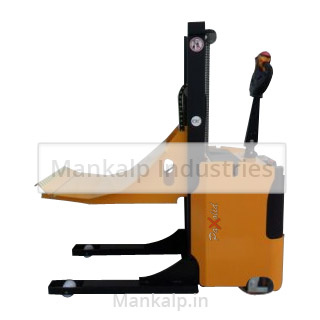

REEL STACKER
MKP 124
Cap: 500/1000/1500 kgs
Max ht 1600 mm
Max ht 1600 mm
We manufacture a range of Reel Stacker that is exclusively designed for lifting Plastics Rolls, Paper Reels and Cloth Rolls, among others. These stackers are suitable for handling anything that rolls and requires to be lifted. The stacker is provided with a fork extension which ensures that it can be easily stacked above the fork limit
Features
- Available capacity : From 100 Kgs to 2000 Kgs.
- Available lifting height : Single Mast, Double Masts, Triple masts from 200 mm-6000 mm.
- Available Options : manual, electric operated & battery operated.
- Choice : special fork length, width, wheels & capacity as per requirement.
Specifications
| Product Code | MKP-124 | |
| Rated Capacity | tons | 0.5 / 1 / 1.5 |
| Min. Lifting Height | mm | 120/ |
| Max. Lifting Height | mm | 1600 / 4000 |
| Fork Length | mm | 1150 / 1500 |
| Fork Width | mm | 550/600 |
| Turning Radius | mm | 1500 |
| Front Wheel Distance | mm | 250 |
| Overall Length | mm | 1800 |
| Overall Width | mm | 865 |
| Overall Height | mm | 2100 |
| Self Weight | kg | 250 |
