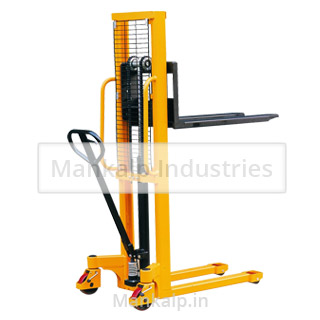

Manual Stacker
MANUAL STACKER
MKP 111
Cap: 500 /1000/1500 kgs
Lifting ht:1.6/2 Mtr.
Lifting ht:1.6/2 Mtr.
We, the Material Handling Equipments solutions provider offer unique range of Hand Stackers at competitive price range. Our Hand Stackers provides a safe and efficient way to endless material application at Distribution Center, Logistics Companies, Industries etc.
Features
- Basic capacity from 500 kg – 1500 kg.
- Lift heights: Mono and telescopic masts from 1400 mm – 3000 mm.
- Special Fork Length & Width.
- Robust construction.
- Pump assembly includes neutral position for controlled handling of load.
- Pistons and cylinder are hard chrome Plated.
- Double sealed high pressured polyurethane seals are used to prevent leakage.
- Industry’s Best Warranty - 1 year.
- Lifting speed – 14 mm/stroke.
- Our Stackers are suitable, where lifting is primary and the transport distance is short
Specifications
| Product Code | MKP-111 | |
| Rated Capacity | tons | 1 / 1.5 / 2 |
| Load Center | mm | 600 |
| Max. Fork Height | mm | 1600 / 2000 |
| Fork Length | mm | 1150 |
| Fork Width | mm | 550/600/300-850 |
| Turning Radius | mm | 1500 |
| Wheelbase | mm | 1100 |
| Front Wheel Distance | mm | |
| Overall Length | mm | 1500 |
| Overall Width | mm | 400 - 865 |
| Overall Height | mm | 2100 |
| Self Weight | kg | 250/260/285 |
