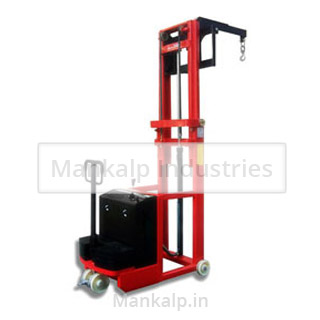

Hook Stacker
HOOK STACKER
MKP 116
Cap: 500/1000 kgs
Lifting ht: 1600/2500/3500
Lifting ht: 1600/2500/3500
Specifications
| Product Code | MKP-116 | |
| Rated Capacity | tons | 0.5 / 1 |
| Load Center | mm | 600 |
| Max. Fork Height | mm | 1600 / 2500 / 3500 |
| Fork Length | mm | 1150 |
| Fork Width | mm | 550/600/300-850 |
| Turning Radius | mm | 1500 |
| Wheelbase | mm | 1300 |
| Front Wheel Distance | mm | 300 |
| Overall Length | mm | 2000 |
| Overall Width | mm | 1500 |
| Overall Height | mm | 2060 |
| Self Weight | kg | 340 / 363 / 388 / 500 |
