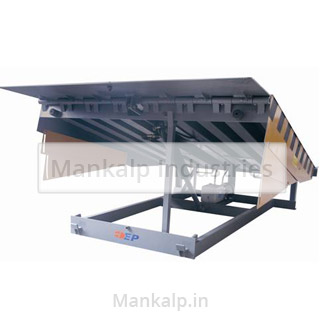

Dock Leveller
DOCK LEVELLER
MKP 191
Cap:16 Ton
Specifications
| Model No. | MKP-191 | MKP-191 | MKP-191 | |
| Capacity | kg | 6000 | 8000 | 10000 |
| Type Required | Electro / Hydraulic | Electro / Hydraulic | Electro / Hydraulic | |
| Working Range (Above / Below) | Frame Height | +/-300 | +/-300 | |
| Frame Height | mm | 610 | 610 | 610 |
| Deck Length | mm | 2640 | 2640 | 2640 |
| Deck Width | mm | 2030 | 2030 | 2030 |
| Lip Extension | mm | 410 | 410 | 410 |
| Overall Length with Lip Extended | mm | 3050 | 3050 | 3050 |
| M.O.C. of Deck | Chequered Sheet | Chequered Sheet | Chequered Sheet | |
| M.O.C. of Lip Plate | Chequered Sheet | Chequered Sheet | Chequered Sheet | |
| Power Supply | 50Hz-415v | 50Hz-415v | 50Hz-415v | |
| Details of Paint | Yellow | Yellow | Yellow | |
