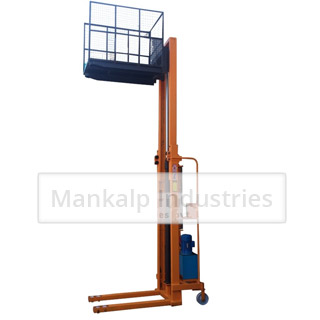

Cage Stacker
CAGE STACKER
MKP 122
Cap: 500 kgs
Ht: 6 Mtr.
Ht: 6 Mtr.
Specifications
| Product Code | MKP-122 | |
| Rated Capacity | tons | 0.5. |
| Load center | mm | 600 |
| Min. Fork Height | mm | 90 |
| Max. Fork Height | mm | 1600 / 6000 |
| Platform Length | mm | 1200 |
| Platform Width | mm | 1200 |
| Cage Railing Height | mm | 1000 |
| Fork Length | mm | 1150 |
| Fork Width | mm | 800 |
| Turning Radius | mm | 1250 |
| Wheelbase | mm | 1100 |
| Front Wheel Distance | mm | 350 |
| Overall Length | mm | 1800 |
| Overall Width | mm | 1200 |
| Overall Height | mm | 2100 |
| Self Weight | kg | 280 |
